⯁ All specifications are subject to change without notice.

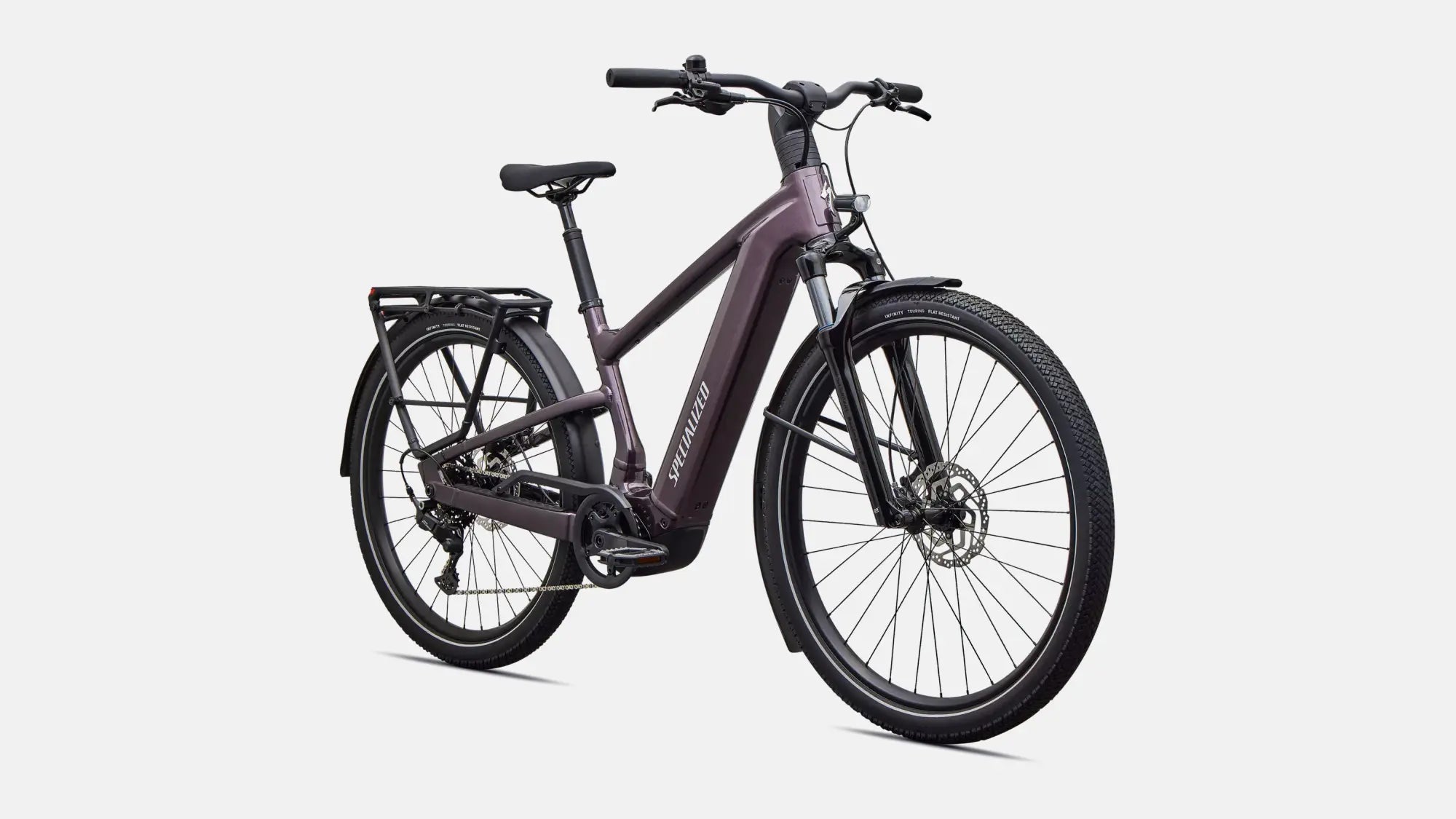

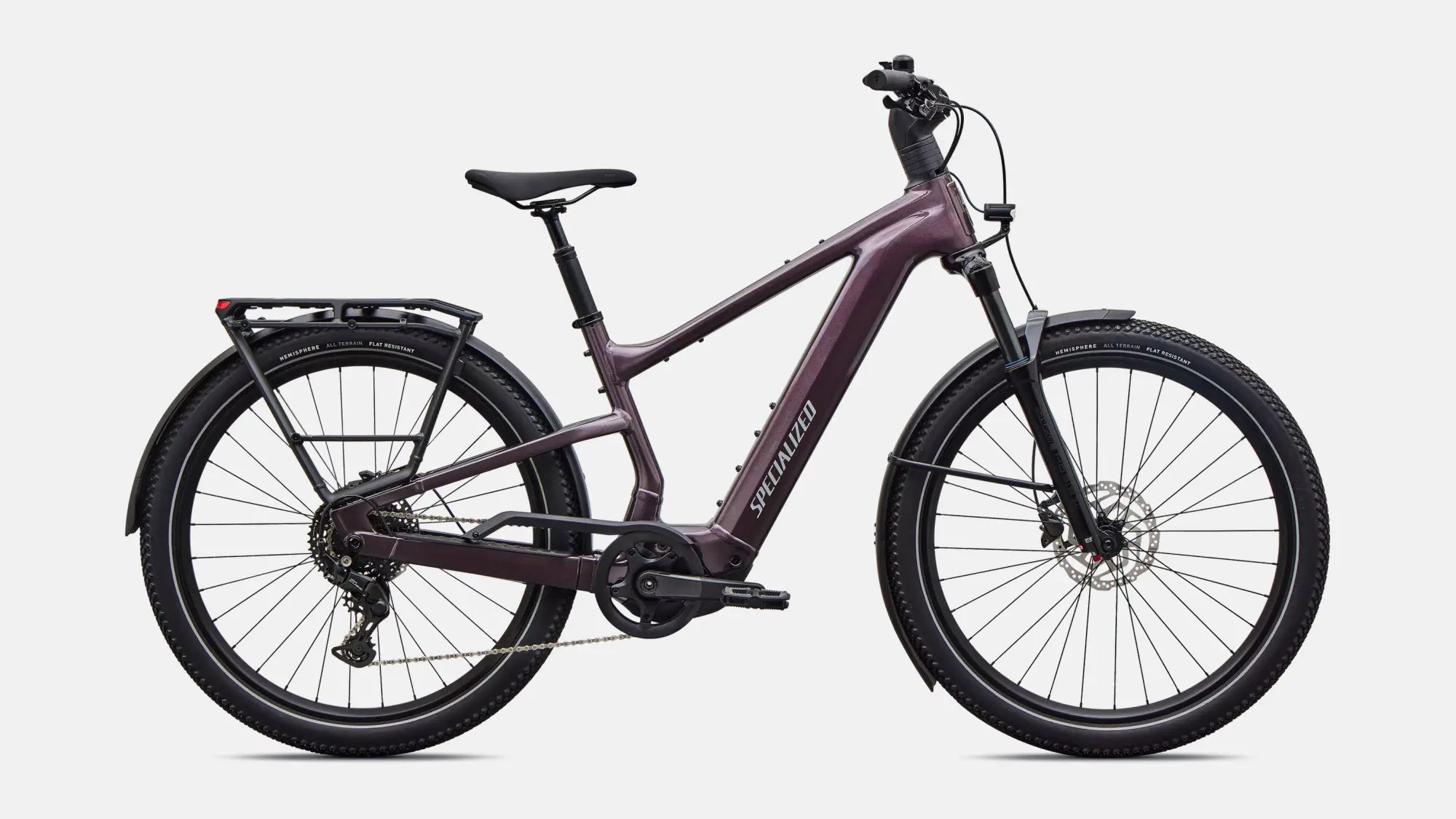

For riders who go farther and roam wider, the Vado 3 EVO elevates everyday riding with more capability, more confidence, and more comfort. From fast city routes to rougher roads and spontaneous detours, it delivers effortless power that moves as naturally as you do—thanks to Levo 4's SuperNatural DNA with instinctive response and incredible ride-anywhere range. With its class-leading features like our Turbo System Lock and built-in Apple Find My, Vado 3 EVO keeps every ride calm, composed, and in control, whatever your day brings. The art of arrival - perfected.
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
Specialized Turbo X2 840Wh integrated battery pack
UI/Remote
Turbo Ergonomic remote
Charger
Specialized 4amp charger
Frame
Vado 3 frame, comfort optimized geometry, side entry battery
Seat Binder
Alloy, 38.6mm
Fork
SR Suntour suspension fork, 120MM of travel (100MM size S), Stanchion 34MM, 15MM Thru axle, 27.5" wheel
Front Brake
Shimano BR-MT200, hydraulic disc, 180mm
Rear Brake
Shimano BR-MT200, hydraulic disc, 180mm
Shift Levers
Shimano CUES 9-Speed with Optical Gear Display
Rear Derailleur
Shimano CUES 9-Speed
Cassette
Shimano CUES 9-speed, 11-41t
Chain
KMC eGlide for 11-Speed CUES
Crankset
170mm, 55mm Chainline, w/BCD 110mm, NW 40T, w/ Chain Guard
Chainrings
40 Teeth with Chain Retention Technology
Chaincase
Vado 3 Custom Chaincase
Rims
27.5" front and rear, 30mm inner width, 32h
Front Hub
Shimano, center lock disc
Rear Hub
Shimano Freehub, Center Lock Disc
Spokes
DT Swiss Elemental
Front Tire
Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Rear Tire
Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Inner Tubes
Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
Stem
Stem w/ integrated Colored Display & USB-C Phone charger, 31.8MM
Handlebars
Alloy, Rise 34.4mm,31.8mm, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2mm, 690-730mm
Grips
Specialized Body Geometry
Saddle
Bridge Sport, Steel rails, 155mm
SeatPost
Suspension, 40mm travel, 34.9mm
Pedals
Turbo Pedals, anti-slip
SWAT
MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)
Headlight
Lezyne Stvzo E500+ 500lm, Fork Mounted
Taillight
Spanninga Rack Integrated Rear Light With Brake Light
Rack
Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
Bike Lock
Mechanical Battery Lock With Key
Fenders
Vado 3 Custom Alloy Profile Fenders
Kickstand
Vado 3 Custom Kickstand, With Adjustable Shoe
Bell
Bell
Weight
28.7 kg (63 lb, 4.4 oz)
Weight Size
MD
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 730mm | 730mm | 730mm | 730mm |
| Stem Length | 60:0000200619mm | 60:0000200619mm | 60:0000200619mm | 60:0000200619mm |
| Saddle Width | 168mm | 168mm | 168mm | 168mm |
| Seatpost Length | 300mm | 350mm | 400mm | 400mm |
| Stack | 636mm | 645mm | 659mm | 682mm |
| Reach | 430mm | 450mm | 470mm | 485mm |
| Head-Tube Length | 135mm | 120mm | 135mm | 160mm |
| Head-Tube Angle | 67° | 68° | 68° | 68° |
| B-B Height | 293.5mm | 293.5mm | 293.5mm | 293.5mm |
| B-B Drop | 66.5mm | 66.5mm | 66.5mm | 66.5mm |
| Trail | 105mm | 98mm | 98mm | 98mm |
| Fork Length (full) | 501mm | 521mm | 521mm | 521mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front-Center | 460mm | 734mm | 772mm | 784mm |
| Chain-Stay Length | 470mm | 470mm | 470mm | 470mm |
| Wheelbase | 1185mm | 1197mm | 1222mm | 1247mm |
| Top-Tube Length (horizontal) | 612mm | 635mm | 659mm | 681mm |
| Bike Stand-Over Height | 768mm | 806mm | 821mm | 854mm |
| Seat-Tube Length | 385mm | 440mm | 460mm | 500mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° |
