Details

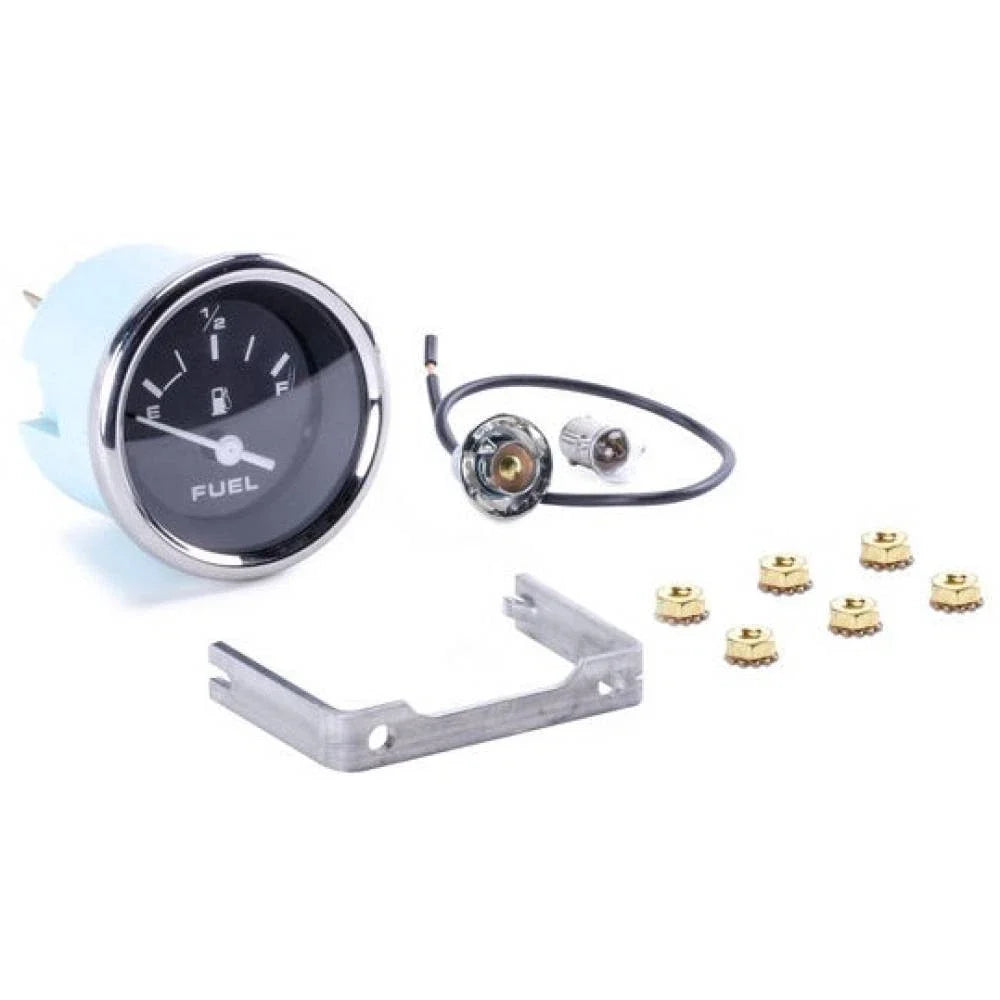

Moeller 035727-10-1 dash mounted electric fuel gauge is designed for top mounting in aluminum, plastic, or stainless steel fuel tanks on all types of marine vessels. The dash-mounted electrical gauges feature an illuminated back dial with bold graphics for accurate readings-day or night. The fuel tank level is displayed by a contoured analog pointer on a calibrated dial. They are compatible with all Moeller and most US Ohm range sending units (sender unit is sold separately).

Features

• Compatible with all Moeller and most US Ohm range sending units
• Designed to fit standard 2 in. instrument dash mounting hole
• Installation diameter 2-1/16″
• Functions: Fuel tank level (E – 1/2 – F)
• Exceeds current NMMA and ABYC specifications
• Sender unit not included/must be purchased separately

Specifications

• Gauge Diameter: 2-1/16″
• Gauge Style: Analog
• Gauge Face Color: Black
• Gauge Text Color: White
• Pointer Color: White
• Bezel Color: Chrome
• Sender Ohm Range: 240 ohms empty, 33 ohms full
