RAM Universal Marine Electronic Mount - C Size Short

Sale price
$56.29
List price
$64.99
You save
$8.70 (13%)


In stock

Details

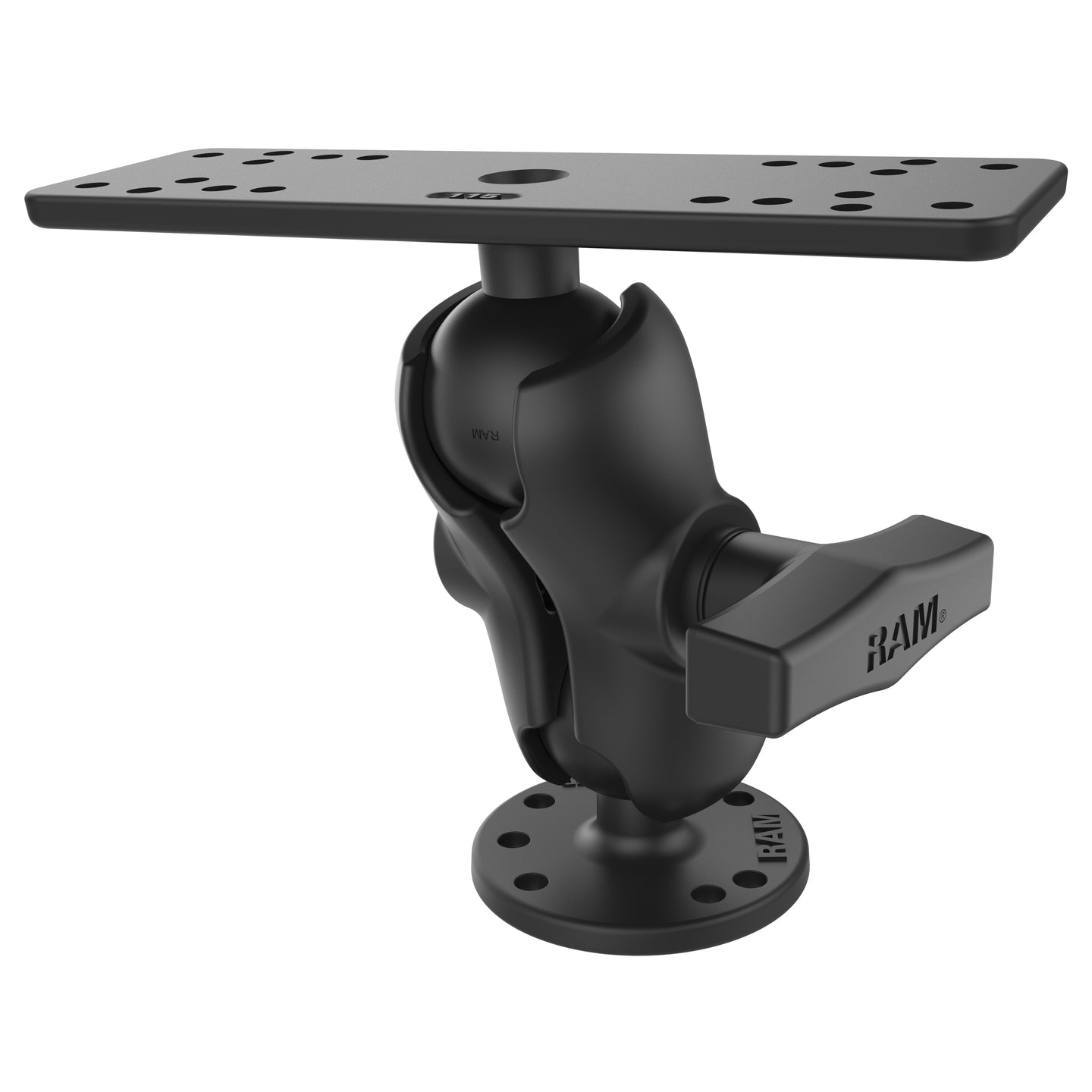

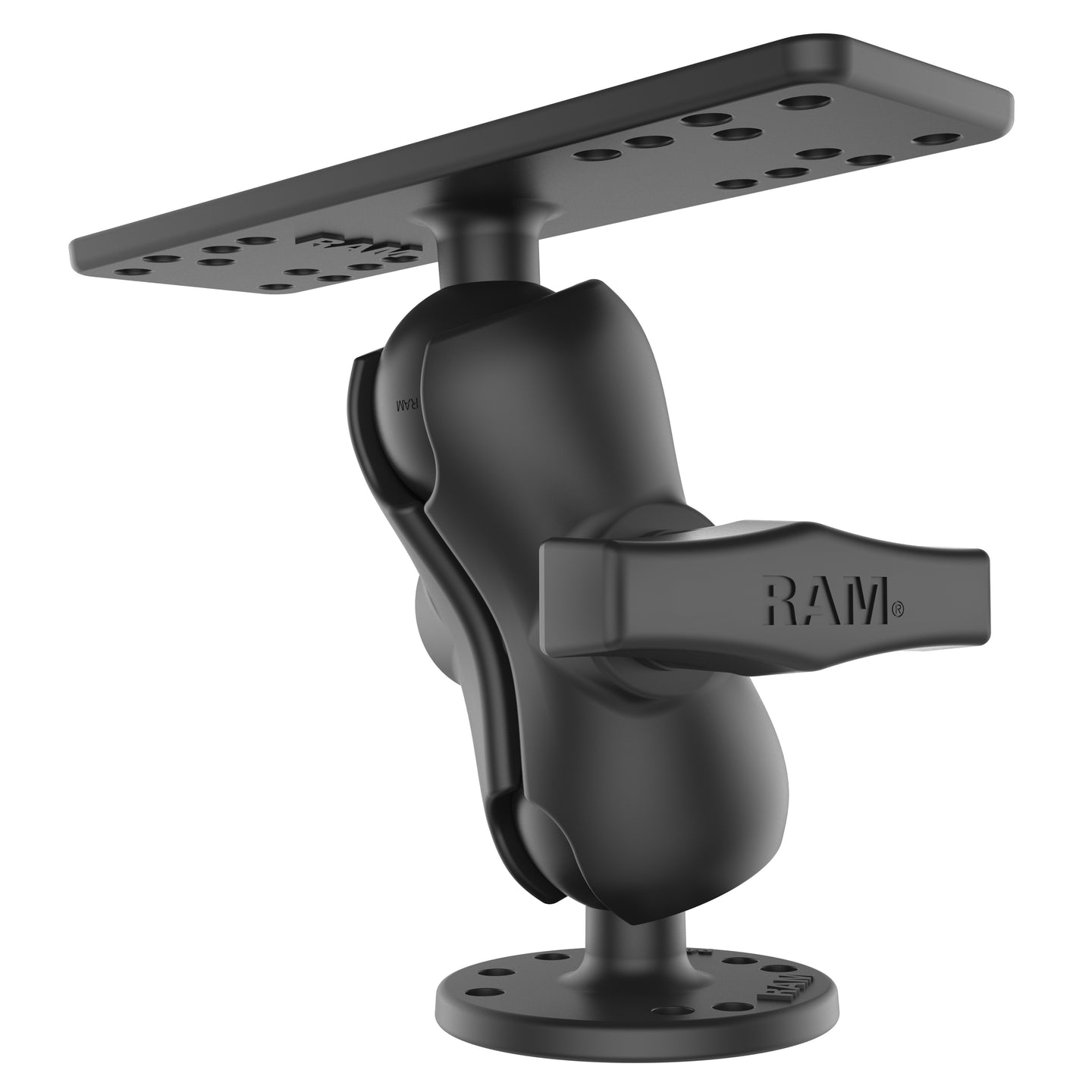

The RAM-111U-B consists of a short double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1.5" C size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1.5" C size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

product dimensions

Overall Height: 5.225"

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

1.08 lb

Additional Information

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
