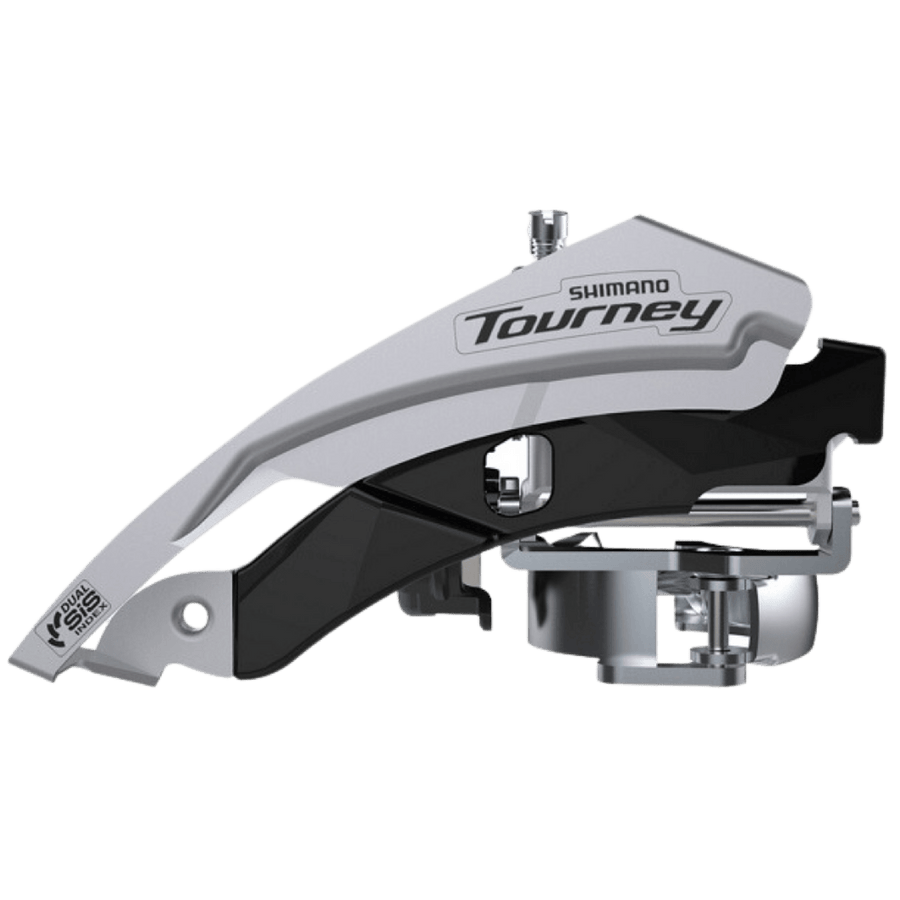

The Shimano Tourney FD-TY601 front derailleur for mechanical 3-speed shifting systems convinces not only with a smooth and fluid shifting behavior, but also with a reliable performance when changing gears. The DUAL SIS index function facilitates the operation of the versatile Top Swing front derailleur and thus allows even more convenient shifting operations.

Thanks to the Dual Pull construction, both a cable routing from above and below is possible. The attachment is made by universal clamp (31.8 / 34.9 mm diameter).

Technical details of the Tourney FD-TY601-L front derailleur

• construction type: Top Swing
• cable routing: Dual Pull
• shifting system: 3 x 6 / 7 / 8-speed
• max. teeth count (large chainring): 48 teeth
• max. distance (large / middle chainring): 10 teeth
• total capacity: 20 teeth
• chain line: 47.5 / 50 mm
